Description
Noonlight 5” Wide LED Utility Wraps Series Is A Cost-effective, Energy-efficient Lighting Solution, That Are Ideal For High-occupancy Dwellings, Parking Garages, Stairwells And Other Commercial Utility Applications.
Equipped With Pc Lens, Comparing With Fragile Prismatis Lens In The Market, Noonlight 5” Wide Utility Wraps Are More Vandall And Long Lasting Fixtures.
Features
- Minimize stock, 1 SKU can cover max. of 12 models.
- An auxiliary to connect low voltage sensor/BLE or other IOT network.
- 2 Depth Design: Super Thin & Standard
- 5-100% 0-10V dimmable, flicker free, Dim to off.
- Built-in PIR Sensor and Motion Sensor Options.
- Built-in Emergency Driver Option.
- L70>50,000hrs, 5 year warranty.
Specifcation
| Model No | DLC | Input Voltage | Wattage | Lens | CRI/CCT | Rated Lumen @ 50K |
Rated Efficancy @ 50K |
Viewing Angle | Rated Lifetime |
DLC Category |
N-LS5-4FT-25W-1XXK |
YES
|
240-347VAC/ 120 - 277VAC 0- 10V Isolated Dimmable, DIm to Off |
25 |
Frosted
|
Ra>80, 30K 35K 40K 50K |
3400 | 135 | 120° |
L70> 50000hrs |
Direct Linear Ambient Luminaires |
N-LS5-4FT-18W-1XXK |
YES |
240-347VAC/ 120 - 277VAC 0- 10V Isolated Dimmable, DIm to Off |
18 | Frosted |
Ra>80, 30K 35K 40K 50K |
2500 | 135 | 120° |
L70> 50000hrs |
Direct Linear Ambient Luminaires |
N-LS5-4FT-15W-1XXK |
YES |
240-347VAC/ 120 - 277VAC 0- 10V Isolated Dimmable, DIm to Off |
15 | Frosted |
Ra>80, 30K 35K 40K 50K |
1600 | 135 | 120° |
L70> 50000hrs |
Direct Linear Ambient Luminaires |
Advantages
HOW TO CHANGE THE WATTAGE IN THIS FIXTURE
CCT Tunable Slide Switch Position | |
Position/Group |
CCT |
CCT1 |
3000K |
CCT2 |
3500K |
CCT3 |
4000K |
CCT4 |
5000K |
Accessories

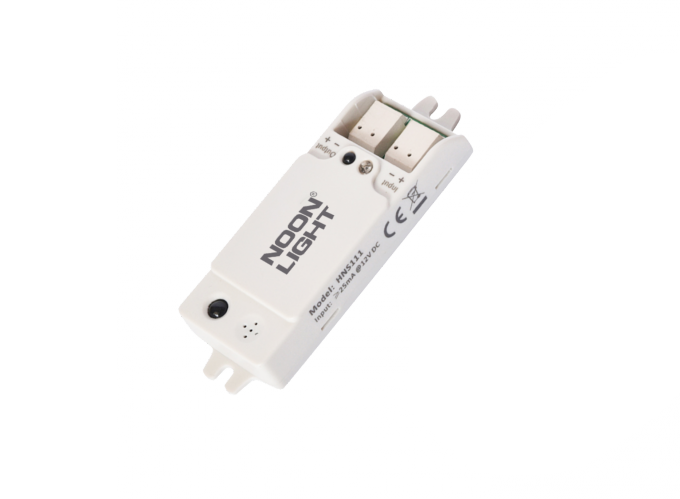

Bi-level 12VDC 0-10V Motion Sensor
Specification
- Dual PD Technology: can idenify daylight and artificatial light.
- Input Voltage: 12VDC
- Output: 0-10V, 25mA sinking current
- Mouting Height: Max. 40ft.
- Detection Range: 30ft @ 40ft height in diameter
- IR remote commissing: easy setting via remote controller
- Photocell available
Applications
Stairwell Lighting, Passageway Lighting, Corridor Lighting, Shop Lighting, Strip Lighting, Low Bay Lighting, Warehouse Lighting
