70W 9100lm Suspended Linear LED Ceiling Lights Commercial All In One

 Description

2.5” Linear Strip Light fixture is a compact diffused light for commercial, retail and residential purpose.

Optional Occupancy Sensor & Built-in Emergency Battery Backup

Features

CLASS P Programmable LED Driver, 4 Step Power Adjustable,

Minimize stock, 1 SKU can cover max. of 16 models.

An auxiliary to connect low voltage sensor/BLE or other IOT network.

Built-in PIR Sensor and Motion Sensor Options.

Built-in Emergency Driver Option.

L70>50,000hrs, 5 year warranty.

Installation

Suitable for surface mounted, suspended mounted.

Accessories

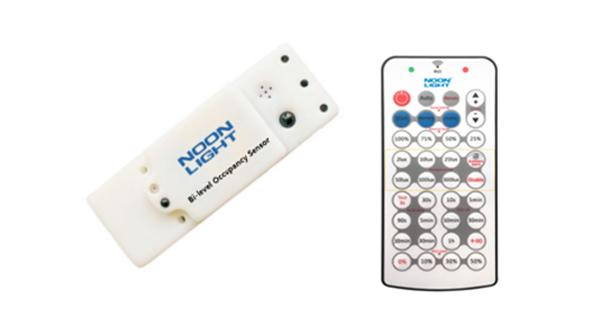

Bi-level 12VDC 0-10V Motion Sensor

Specification

• Dual PD Technology: can identify daylight and artificial light.
• Input Voltage: 12VDC
• Output: 0-10V, 25mA sinking current
• Mounting Height: Max. 40ft.
• Detection Range: 30ft @ 40ft height in diameter
• IR remote commissioning: easy setting via remote controller
• Photocell available

Default Setting/Setting

• Sensitivity: 100%/25%, 50%, 75%, 100%
• Daylight Sensor: Disable/Ambient Learn, 10lux, 30lux, 50lux, 100lux, 300lux, 500lux, Disable
• Hold Time: 5min/10s, 1min, 5min, 5min, 10min, 15min, 20 min, 30min, 60 min
• Twiligh Time: never turn off/1min, 30min, 1h, never tun off
• Twilight Level: 20%/off, 10%, 20%, 50%

4W or 8W UL Listed Emergency Backup

• Listed for field Instllation-UL924 & CSA C22.2 NO. 141
• Input: 120-277VAC/347VAC 50/60Hz
• Output: 25-50VDC, 15 or 30W
• Illumination Time: 90min
• Battery Type:Li-ion/Ni-MH
• Battery Recharge Time: 24Hrs
• Surge Protection: 3KV
• Protection:

• Input over-current Protection (Fuse)
• Output over-voltage Protection
• Output Low Voltage Protection
• Output Short Circuit Protection
• Working Temp.: 10℃ to 50℃

Advantages

HOW TO CHANGE THE WATTAGE IN THIS FIXTURE

HOW TO CHANGE THE CCT IN THIS FIXTURE

Applications

Office, Stairwell, Corridor, Shop, Low Bay, Education, Hospital Lighting
