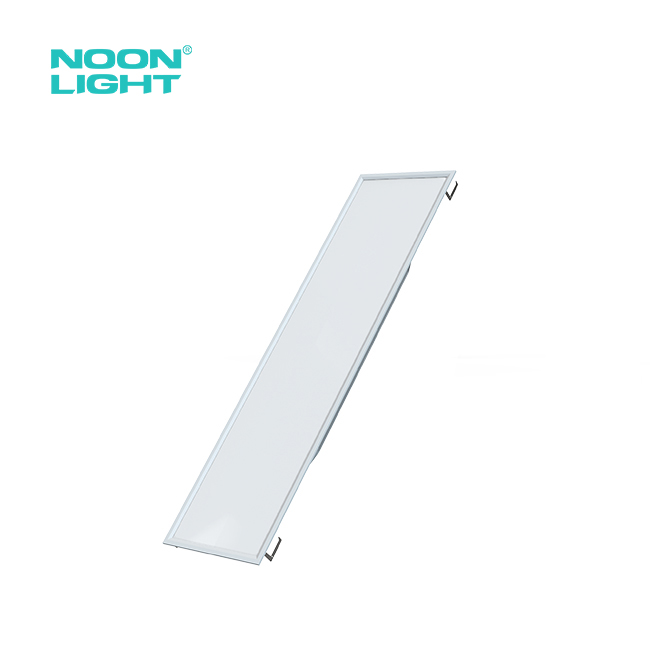

ETL Certification 2x4 Backlit Led Panel Wall Mounted With Sensor

Overview
Recommended Products

Features

Minimize stock, 1 SKU can cover max. of 16 models.
An auxiliary to connect low voltage sensor/BLE or other IOT network.
Built-in PIR Sensor and Motion Sensor Options.

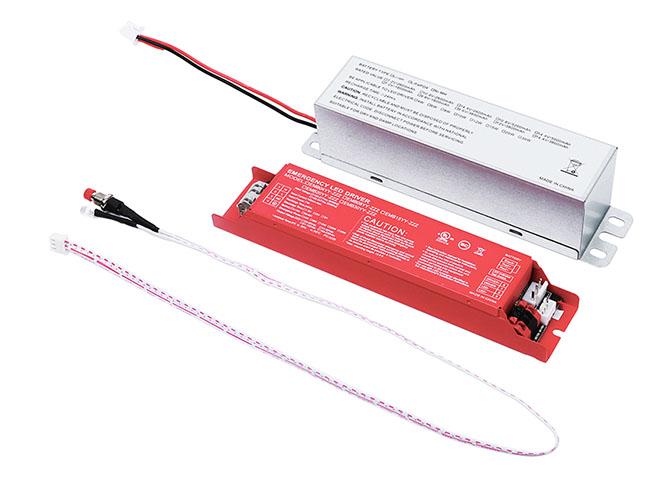

Built-in Emergency Driver Option.
L70>50,000hrs, 5 year warranty.

Certificate

ETL Certification 2x4 Backlit Led Panel Wall Mounted With Sensor 2

Specification

Model No

DLC

Input Voltage

Rated Wattage

Lens

Color

Rated Lumen @3000K

Rated Efficacy

Viewing Angle

Rated Lifetime

Replacing

Power Adjustable, CCT Tunable, 0-10V Dimmable, Troffer LED Fixture, Standard Version

N-TF-24-40-XX-WC1-

[BLANK,HV]-

[S1, S2, S3, S4, S5, S6, BLANK)--[SL, F]

120-347VAC/

120 - 277VAC 0- 10V Isolated

Dimmable

40W

Frosted

30K

35K

40K

50K

5000LM

125LM/W

120 °

L70>

50000hrs

60W - 200W

Incandescent

N-TF-24-34-XX-WC1-

[BLANK,HV]-

[S1, S2,BLANK)--[SL, F]

34W

4250LM

N-TF-24-25-XX-WC1-

[BLANK,HV]-

[S1, S2, S3, S4, S5, S6, BLANK)--[SL, F]

26W

3250LM

N-TF-24-20-XX-WC1-

[BLANK,HV]-

[S1, S2, S3, S4, S5, S6, BLANK)--[SL, F]

20W

2500LM

Accessories

ETL Certification 2x4 Backlit Led Panel Wall Mounted With Sensor 5

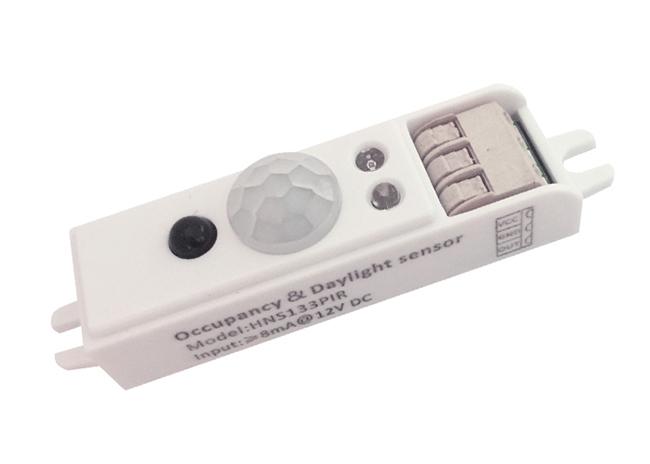

Bi-level 12V PIR Sensor/PIR Sensor with Daylight Harvesting

Specification

Input: 12-24VDC, >8ma
0-10V DC output signal
Memeory function with one bottun commissiong.

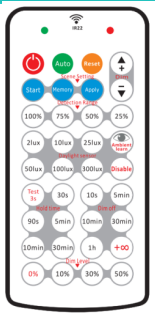

IR Remote controller commission.
Detecton Range: Max. 6m in diameter.
Mounting Height: 3-4m.
Optional Daylight Harvesting

Default Setting/Setting

Sensitivity: 100%/25%, 50%, 75%, 100%
Daylight Sensor: Disable/Ambient Learn, 2lux, 10lux, 25lux, 50lux, 100lux, 300lux, Disable
Hold Time: 5min/30s, 90s, 5 min, 10min, 30min
Twilgith Time: never turn off/10s, 5min, 10min, 30min, 1h, never tun off
Twilight Level: 30%/off, 10%, 30%, 50%
