Description

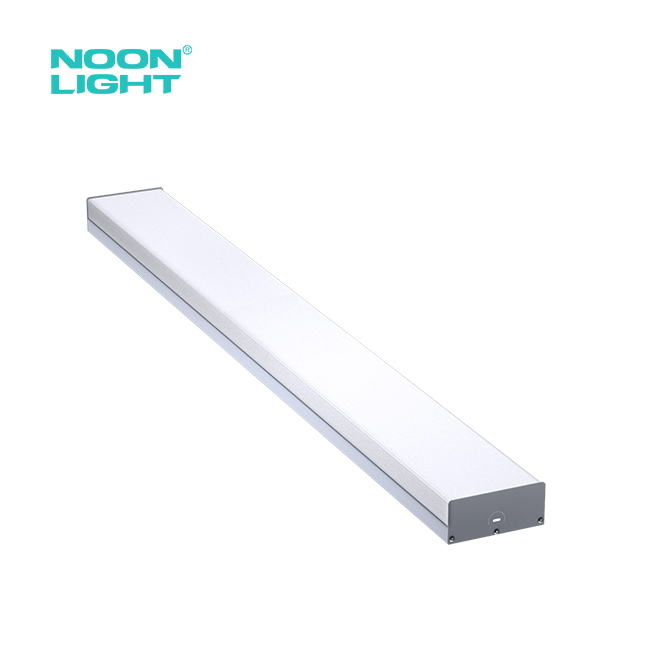

- Noonlight 5” Wide LED Utility Wraps Series is a cost-effective, energy-efficient lighting solution, that are ideal for high-occupancy dwellings, parking garages, stairwells and other commercial utility applications.
- Built-in Occupancy Sensor allows for Bi-level controlseal for stairwell, passageway, strip lighting and general lighting etc.
Features
- CLASS P Programmable LED Driver, 3 Step Power Adujustable,
- Minimize stock, 1 SKU can cover max. of 12 models.
- 2 Depth Design: Super Thin & Standard
- Built-in PIR Sensor and Motion Sensor Options.
- L70>50,000hrs, 5 year warranty.
Specification
| Model No | DLC | Input Voltage | Wattage | Lens | CRI/CCT | Rated Lumen @ 50K |
Rated Efficancy @ 50K |
Viewing Angle | Replacing |
N-LS5-4FT-25W-1XXK |
YES |
100-277VAC or 100-347VAC 0-10V Isolated Dimmable, Dim to Off |
25 |
Frosted
|
Ra>80, 30K 35K 40K 50K |
3400 | 135 | 120° | Direct Linear Ambient Luminaires |
| N-LS5-4FT-18W-1XXK | YES |
100-277VAC or 100-347VAC 100-277VAC or 100-347VAC 0-10V Isolated Dimmable, Dim to Off |
18 | Frosted |
Ra>80, 30K 35K 40K 50K |
2500 | 135 | 120° | Direct Linear Ambient Luminaires |
| N-LS5-4FT-15W-1XXK | YES |
100-277VAC or 100-347VAC 0-10V Isolated Dimmable, Dim to Off |
15 | Frosted |
Ra>80, 30K 35K 40K 50K |
1600 | 135 | 120° | Direct Linear Ambient Luminaires |
Advantages
HOW TO CHANGE THE CCT IN THIS FIXTURE
CCT Tunable Slide Switch Position | |
Position/Group |
CCT |
CCT1 |
3000K |
CCT2 |
3500K |
CCT3 |
4000K |
CCT4 |
5000K |
Applications
Office Lighting, Stairwell Lighting, Corridor Lighting, Shop Lighting, Low Bay Lighting
