Detail Information
| Product Name: | Input Voltage(V): |
|---|---|
| Housing: | Light Source: |
| Installation: | DLC Category: |
| Highlight: |
Features
- Flick Free Troffer LED Retrofit UP TO 130LM/W
- CCT Tunable LED Troffer Retrofit CRI>80, CCT Tunable, 3000K, 3500K, 4000K and 5000K
- Minimize stock, 1 SKU can cover max. of 16 models.
- Troffer Retrofit With Motion Sensor 5-100% 0-10V dimmable, flicker free, Dim to off.
- Adjustable CCT Troffer Retrofit L70>50,000hrs, 5 year warranty.
pecification
| Model No | DLC | Input Voltage | Rated Wattage | Lens | Color | Rated Lumen @ 30K |
Rated Efficancy |
Viewing Angle | Rated Lifetime | Replacing |
| N-TR-24-40-XX-WC1 | P |
120-347VAC/ 120 - 277VAC 0- 10V Isolated Dimmable |
40W |
Frosted
|
30K 35K 40K 50K |
5000LM | 125LM/W | 120° |
L70> 50000hrs |
60W - 200W Incandescent |
|
N-TR-24-34-XX-WC1 |
P |
120-347VAC/ 120 - 277VAC 0- 10V Isolated Dimmable |
34W | Frosted |
30K 35K 40K 50K |
4250LM | 125LM/W | 120° |
L70> 50000hrs |
60W - 200W Incandescentcent |
| N-TR-24-25-XX-WC1 | P |
120-347VAC/ 120 - 277VAC 0- 10V Isolated Dimmable |
26W | Frosted |
30K 35K 40K 50K |
3250LM | 125LM/W | 120° |
L70> 50000hrs |
60W - 200W Incandescent |
| N-TR-24-20-XX-WC1 | P |
100-277VAC or 100-347VAC |
20W | Frosted |
30K 35K 40K 50K |
2500LM | 125LM/W | 120° |
L70> 50000hrs |
60W - 200W Incandescent |
Accessories
Bi-level 12V PIR Sensor/PIR Sensor with Daylight Harvesting
Default Setting/Setting
- Sensitivity: 100%/25%, 50%, 75%, 100%
- Daylight Sensor: Disable/Ambient Learn, 2lux, 10lux, 25lux, 50lux, 100lux, 300lux, Disable
- Hold Time: 5min/30s, 90s, 5 min, 10min, 30min
- Twilgith Time: never turn off/10s, 5min, 10min, 30min, 1h, never tun off
- Twilight Level: 30%/off, 10%, 30%, 50%

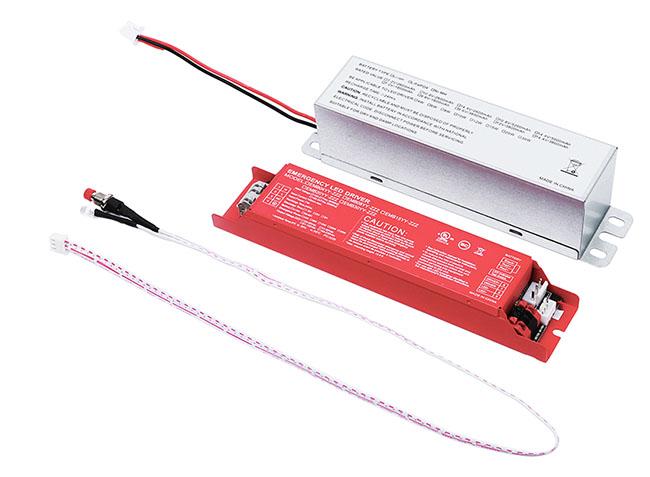

Troffer Retrofit With EM Battery Backup
8W or 15W UL Listed Emergency Backup
- Listed for field Instllation-UL924 & CSA C22.2 NO. 141
- Input: 120-277VAC/347VAC 50/60Hz
- Output: 25-50VDC, 8W or 15w
- Battery Recharge Time: 24Hrs
- Surge Protection: 3KV
Advantages
HOW TO CHANGE THE WATTAGE & CCT IN THIS FIXTURE
Power Adjustable Slide Switch Position | ||||
Size/Positon |
0 |
1 |
2 |
3 |
1X4 |
27W |
24W |
20W |
16W |
2X2 |
27W |
24W |
20W |
16W |
2X4 |
40W |
30W |
25W |
20W |
Applications
Schools, offices, conference room, hospitality etc.
