Detail Information
| Product Name: | Power: |
|---|---|
| CCT: | Housing: |
| Installation: | DLC Category: |
| Highlight: |

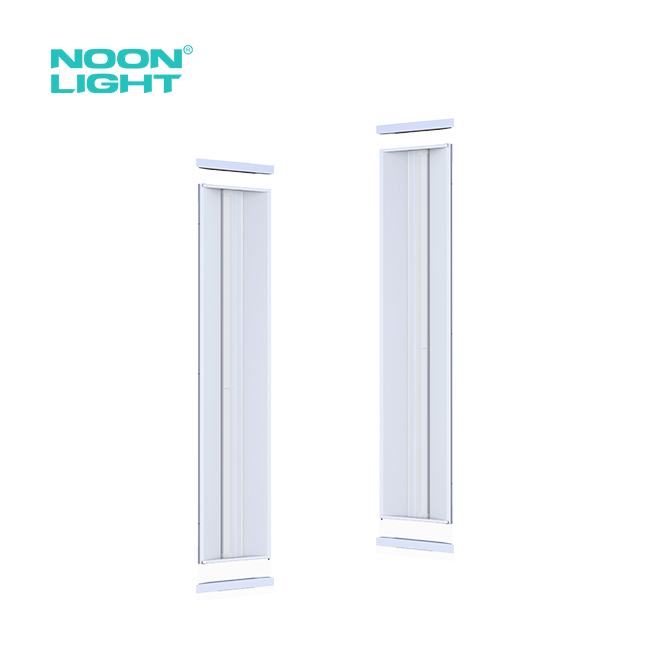

CCT and Power Tuanable LED Troffer Retrofit Description
- Super sleek fixture allows the installers no need to remove the fluorescent fixture mounting from the ceiling.
- Integral with new trend of field-adjustable functions provide our customers greater flexibility on wattages and color temperatures.
Features
- DLC5.1 Premium LED Troffer Retrofit CRI>80, CCT Tunable, 3000K, 3500K, 4000K and 5000K
- Minimize stock, 1 SKU can cover max. of 16 models.
- Flick Free Troffer LED Retrofit 5-100% 0-10V dimmable, flicker free, Dim to off.
- CCT and Power Tuanable LED Troffer Retrofit Built-in Emergency Driver Option.
- Wattage Tunable Troffer Retrofit L70>50,000hrs, 5 year warranty.
Specification
| DLC 5.1 Premium | ||||
| N-TR-14-27 | 27W | 24W | 20W | 16W |
| 30K 35K 40K 50K | ||||
| Rated Lumen @ 30K |
3375LM | 3000LM | 2500LM | 2000LM |
| Rated Efficancy | 125LM/W | Lens | Frosted | |
| Input Voltage | 120-347VAC/120 - 277VAC 0- 10V Isolated Dimmable | |||
| Warranty | 5 Years | Installation | Surface Mounted, Suspension Mounted | |
Accessories
Bi-level 12V PIR Sensor/PIR Sensor with Daylight Harvesting
Default Setting/Setting
- Sensitivity: 100%/25%, 50%, 75%, 100%
- Daylight Sensor: Disable/Ambient Learn, 2lux, 10lux, 25lux, 50lux, 100lux, 300lux, Disable
- Hold Time: 5min/30s, 90s, 5 min, 10min, 30min
- Twilgith Time: never turn off/10s, 5min, 10min, 30min, 1h, never tun off
- Twilight Level: 30%/off, 10%, 30%, 50%
Advantages

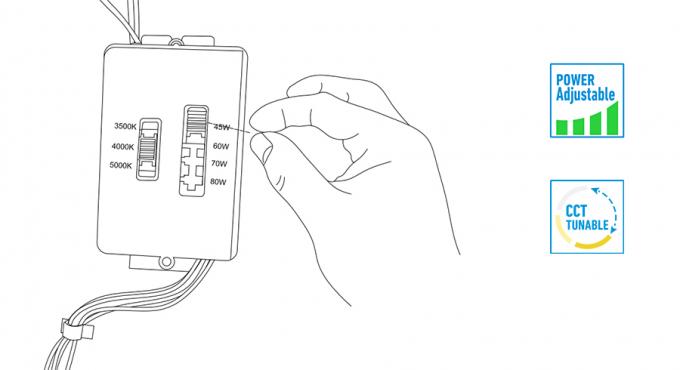

HOW TO CHANGE THE WATTAGE & CCT IN THIS FIXTURE
Power Adjustable Slide Switch Position | ||||
Size/Positon |
0 |
1 |
2 |
3 |
1X4 |
27W |
24W |
20W |
16W |
2X2 |
27W |
24W |
20W |
16W |
2X4 |
40W |
30W |
25W |
20W |
Applications
Schools, offices, conference room, hospitality etc.
